EV Charging

iGenergy EV Charger
& Charging Station

OCPP 2.0

iGenergy's comprehensive EV charging lineup covers every use case — from high-power DC fast charging stations at commercial hubs to smart AC wall chargers for workplaces and residential complexes. Both product lines are OCPP 2.0 compliant with cloud management, energy monitoring, and payment integration built in.

120–480kW DC Fast 7–22kW AC Wall OCPP 2.0 Dual-Gun Simultaneous >96% Efficiency
iGenergy DC EV Fast Charging Station — multi-gun with touchscreen display
Product Range

Two Charging Solutions — One Ecosystem

Both charger types share a unified cloud management platform, payment system, and energy management backend.

iGenergy DC Fast Charge Station
DC Fast Charge

DC Fast Charge Station

High-power multi-gun charging for commercial EV hubs, highway service areas, fleet depots, and retail destinations. Dual-gun simultaneous charge with dynamic power sharing.

120–480 kW Dual CCS2 / CHAdeMO / GB/T 10" Touchscreen

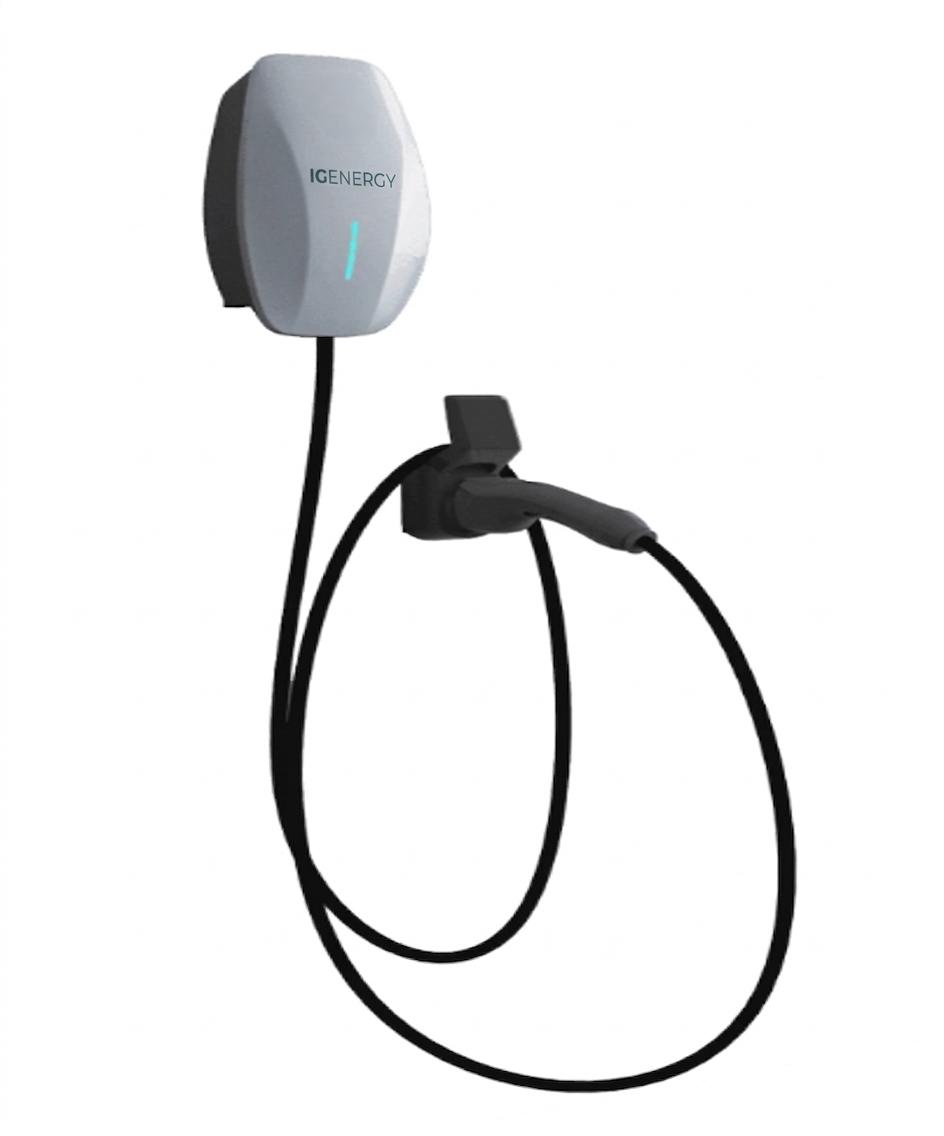

iGenergy AC Wall-Mount EV Charger
AC Wall Charger

AC Wall-Mount EV Charger

Elegant octagonal wall-mount charger for workplaces, hotels, car parks, and home use. RFID and app-controlled with built-in metering and WiFi/4G connectivity.

7 / 11 / 22 kW Type 2 Connector RFID + App
Specifications

Technical Specifications

DC Fast Charge Station

Output Power120 – 480 kW
Input Voltage380V 3-phase AC
Output Voltage200 – 1,000 V DC
Output CurrentUp to 600A per gun
ConnectorsDual CCS2 / CHAdeMO / GB/T
Simultaneous ChargeYes — dual gun, dynamic power sharing
Efficiency>96%
Display10" colour touchscreen
CommunicationOCPP 2.0 / 4G / Ethernet
PaymentRFID / QR / Credit card
ProtectionIP54
Operating Temp-20°C to +55°C
CertificationsCE / CB / IEC 61851

AC Wall-Mount Charger

Output Power7 kW / 11 kW / 22 kW
Input Voltage240V single-phase / 32A
ConnectorType 2 (IEC 62196-2)
Cable Length5 m standard
AuthenticationRFID card + mobile app
ConnectivityWiFi / 4G / Ethernet
CommunicationOCPP 1.6J / 2.0
Energy MeteringMID-certified built-in
Load ManagementDynamic load balancing
ProtectionIP65
Operating Temp-20°C to +50°C
CertificationsCE / TUV / IEC 61851
Features

Smart Charging Built In

Dynamic Power Sharing

The DC station intelligently distributes its total rated power between two simultaneous sessions — ensuring maximum vehicle charge rate for each connected EV.

Mobile App Control

Drivers start and stop sessions, view real-time charging status, and review session history via the iGenergy mobile app on iOS or Android.

Safety-First Design

Over-voltage, over-current, short-circuit, leakage, and over-temperature protection on every unit. Automatic session termination on fault detection.

Multi-Protocol OCPP

OCPP 2.0 compliance enables integration with any third-party charging network operator, fleet management system, or energy management platform.

Flexible Payment

Accept RFID cards, QR code scanning, NFC contactless, and major credit cards — or configure as access-controlled for fleet and workplace use.

Load Balancing & V2G Ready

Site-level load management prevents grid demand spikes. Hardware is V2G-ready for future vehicle-to-grid energy export capabilities.

Product Images

EV Charger Gallery

FAQ

Frequently Asked Questions

The iGenergy DC Fast Charge Station supports dual-gun simultaneous charging with dynamic power sharing. Both connectors are active at the same time — total station power is dynamically split based on each vehicle's demand, up to the rated maximum per gun. For higher throughput, multiple stations can be networked together under a single load management controller.
Yes. The AC wall charger supports standalone offline mode with RFID card authentication stored locally. Sessions, energy data, and fault logs are cached and synced to the cloud management platform once connectivity is restored. This makes it suitable for basement car parks or areas with intermittent connectivity.
The DC Fast Charge Station supports CCS2, CHAdeMO, and GB/T connectors — covering Tesla (with adapter), BYD, Hyundai, Kia, BMW, Mercedes, Audi, Volkswagen, and all mainstream Asian EV brands. The AC wall charger uses the universal Type 2 connector compatible with all AC-charging capable EVs.
iGenergy chargers natively integrate with our graphene battery BESS via the PowerOS platform. The system can charge batteries during off-peak periods and serve EV charge sessions during peak periods — eliminating costly grid capacity upgrades while reducing energy costs. This is particularly valuable for high-power (240kW+) DC fast charge deployments.

Build Your EV Charging Infrastructure

Whether you need a single wall charger or a 10-station fast charge hub, iGenergy provides the hardware, software, and ongoing support.
